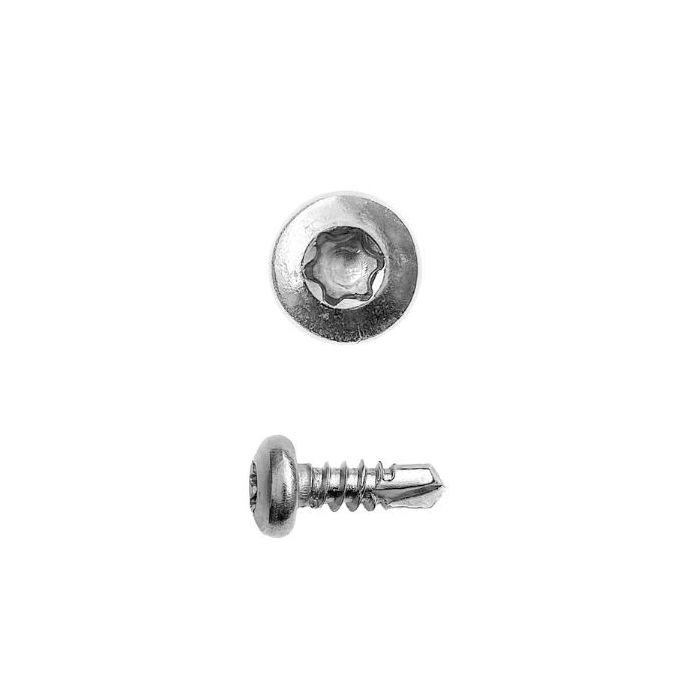

Self Tapping Stainless Steel Screw - 4.2 x 13mm Torx
Self Tapping Stainless Steel Screw - 4.2 x 13mm TorxDescription
A2 stainless steel screw. For attaching aluminum profiles to aluminum substructures, eg gutters.
Buy Self Tapping Stainless Steel Screw - 4.2 x 13mm Torx. Polished surface. Perfect for use in installing pigeon and bird spikes on aluminum roof trusses.
Specifications:
Material: A2 stainless steel
Surface: Glossy
RoHS Compliant: Yes
Head shape: Pan head
Drive type: AW Thread type:
Self-tapping screw thread Tip shape : Drill tip
Base : Aluminum
Recommended machining speed (idle) min./max.: 1700-2500 rpm
Nominal diameter (d1): 4.2 mm
Length (l1): 13 mm
Head diameter (dk): 8 mm
Head height (k1): 3.45 mm
Drill tip length (lp): 4.4 mm
Thread length with drill tip: 10.5 mm
Internal drive: AW 20
Recommended substructure thickness min. 1.5 mm
Material thickness to be drilled through max. (metal): 3 mm
Fastening thickness min./max.: 2 - 5.5 mm
More Information
| SKU | 1385 |
|---|---|
| Weight (kg) | 0.01 |
| Barcode | 1385 |
| Brand | ZW |
| Country of Manufacture | Germany |
| Color | Silver |
| Product type | Accessories |
