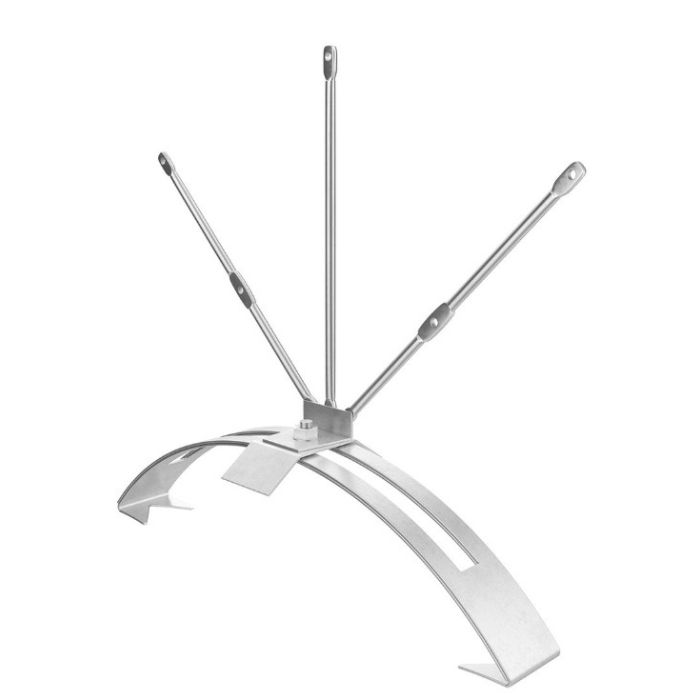

Smoke protection 3-leg up to 410 mm

Coverage width : up to 200 mm
Strap length: adjustable from 210 mm to 410 mm
Band width: 25 mm
Band thickness: 0.8 mm
Pin thickness: 4 mm
Pin length: 130 mm (new version with underflight protection)
Material: 1.4301 stainless steel

Installation:

Clean the surface, then attach the stainless steel brackets approximately 1.5 meters apart.

Installation of the wires (one spring and 2 sleeves are mounted per section). Cut the stainless steel cable to the correct length with a reserve of approx. 20-25 cm.

1. On the pin without spring: The stainless steel cable is passed through the sleeve and then through the hole in the pin. The cable is then pulled back through the sleeve and the resulting loop is pulled tighter against the pin. Clamp the sleeve with the crimping pliers - to be on the safe side, clamp it in two places at different angles.

2. On the spring: Hook the spring onto the pin on the next bracket, pull the other end of the cable through the sleeve, then through the other eye on the spring and back through the sleeve. Pull the end of the cable back to tighten the spring, push the sleeve against the pin, hold it, and squeeze the sleeve twice. Cut the rest of the cable just behind the sleeve.
